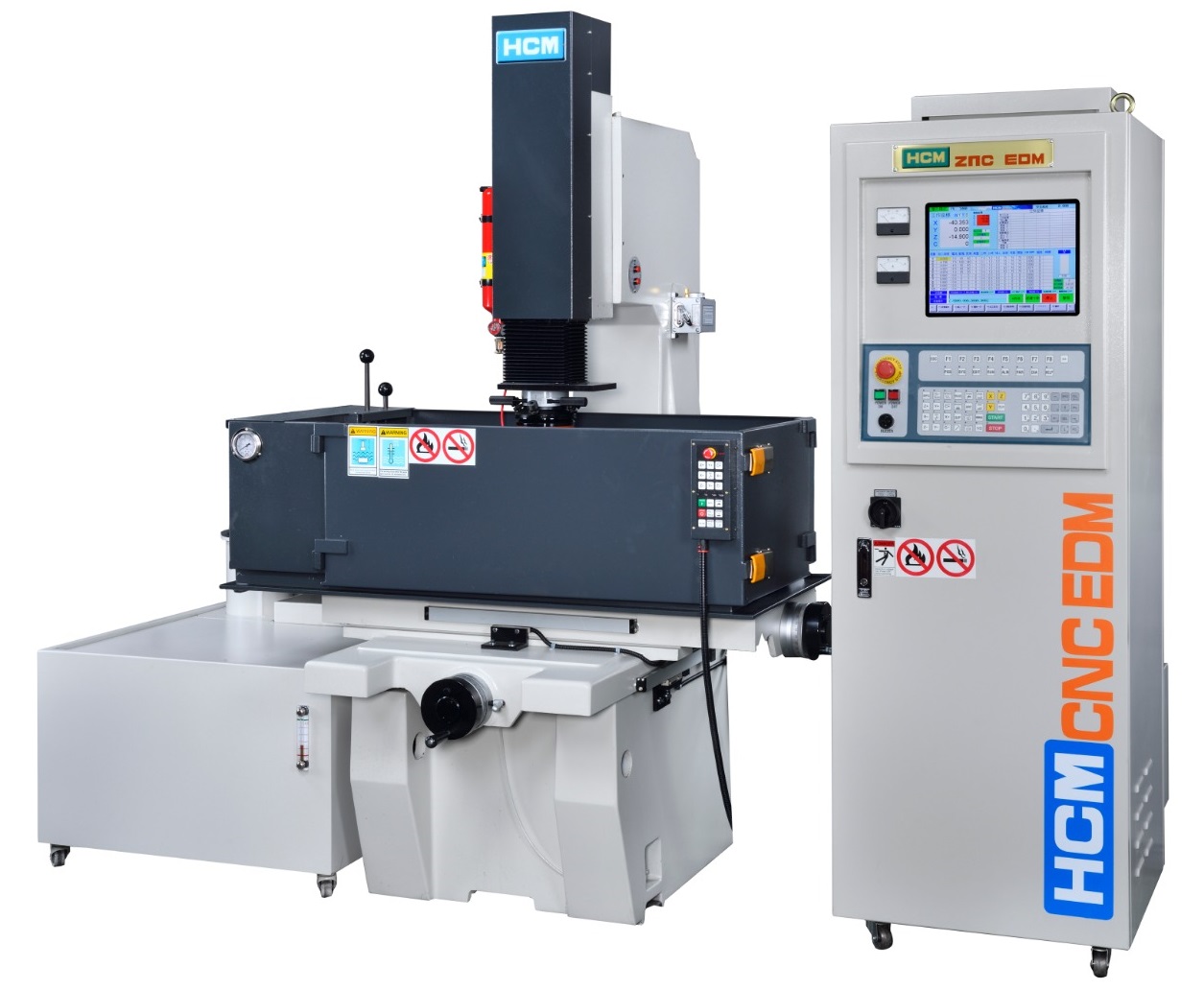

H5040+E75

ZNC Series

H5040+E75

machine body, oil box,controller separate

XYZ axes travel: 500x400x185mm (20"x16"x7") inch
Z axis single travel: 400mm (16") inch
U axis travel: 300mm (12") inch

Work table: 800x450 mm (31"x18") inch
Max. Workpiece: 1250x650x390 mm (49"x26"x15") inch
Max. Workpiece weight: 1400 kg
Max. Electrode weight: 185 kg
Machine net weight: 1850 kg
Oil level :110~360mm (4"-14") inch


Z axis double Occupied dimension (LxWxH):

1730x3421x2353mm (71.1"x104.5"x92.6" )inch

Z axis single Occupied dimension (LxWxH):

1730x3421x2602mm (71.1"x104.5"x102.4" )inch


Work Table to platen:
Z axis single travel: 230-630 mm (9"x25") inch
UZ axis: 230-715 mm (9"x28") inch

Filter： 1
Paper filter：2
Capacity：500 Liters

1.The system adopts Windows CE communication controller.

2. Real-time alarm notification, when an alarm occurs, user can immediately identify and address.

3.Three axis adopt 1μm optical scale

4. Highly scalable interface, Can update software and upgrades through USB.

5. Processing conditions have automatic editing, which can generate the best conditions to optimize processing according to the material , area ,processing depth and final current of the single-sided gap.

6. Utilizing a new generation of processing power circuit, customers can adjust electrodes with finer shapes to achieve the best R-angle accuracy.

7. The newly developed microcomputer numerical control super-hard machining circuit can suppress consumption and greatly shorten the processing time, and achieve the best surface roughness.

8. Excellent processing circuit, can process various materials NAK80, P20, SKD11, stainless steel and special materials titanium alloy, etc.
